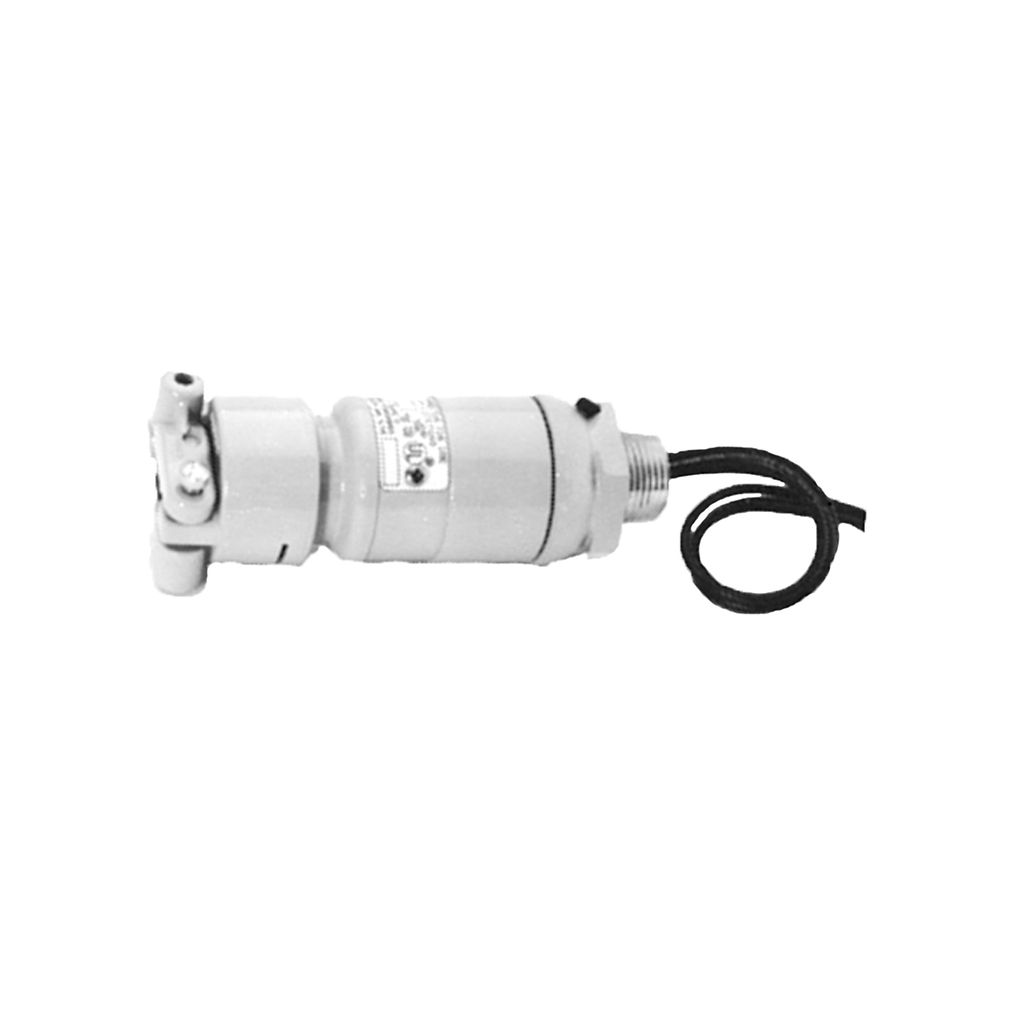

Features
- For use with No. 18 thru 12 AWG 3-Conductor Type S or SO cord
- Furnished with 9 °C wire leads
- 12"" leads of #12 stranded wire are furnished for connection to wiring or equipment within the explosionproof housing
Specifications
- Hazardous Area Classification
- Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Group G; Class III; NEMA 7BCD, 9G; Watertight
- Amperage
- 20
- Voltage
- 480 Vac
- Nipple Size
- 1/2 or 3/4
- Plug Cable Diameter
- .250 – .375, .375 – .500 or .500 – .625
- Type of Cable
- 18 thru 12 AWG 3-Conductor Type S or SO Cable
- Materials and Finishes
- Copperfree (4/10 of 1% max.) aluminum with epoxy powder coat.
