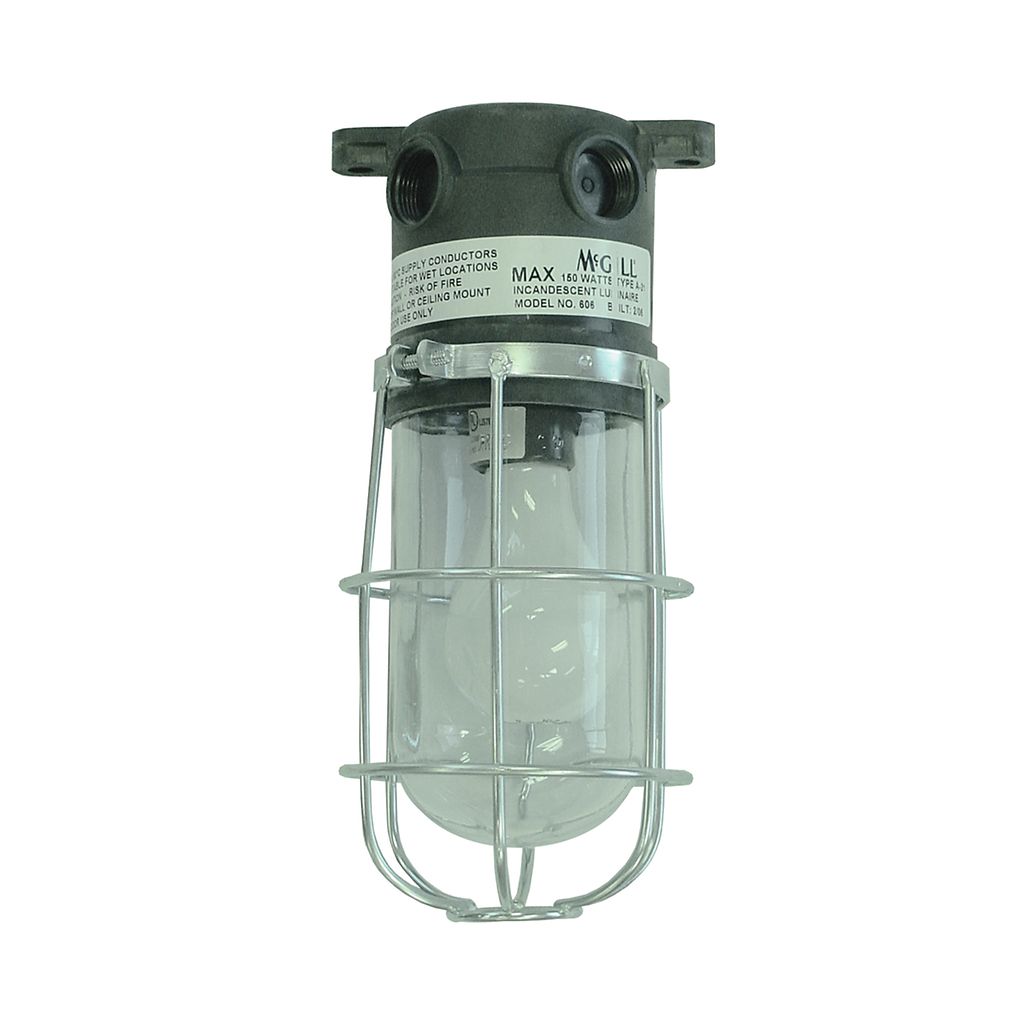

Features
- Fasten directly to walls, ceilings, or structural members; no separate outlet box required
- Glass globes screw out for easy replacement of A-21 bulbs (not included) up to 150 Watts
- High quality materials and sockets assure long, trouble-free service life
- 88.9 mm (3.5 in) diameter; 241.3 mm (9.5 in) height
- Two 7.9 mm (0.31) diameter mounting holes on 111.3 mm (4.38 in) centers
- Moisture-resistant construction with no exposed metal parts
- Large compartment for easy wiring
- Super strong, impact-resistant, thermoplastic mounting unit
- For use up to 38 °C (100 °F) ambient temperature
- Accommodates up to 150 Watts (maximum) domestic A-21 bulbs
- For use with either 12.7 mm (0.5) or 19.1 mm (0.75 in) rigid non-metallic conduit
Specifications
- NEC/CEC Certifications and Compliances
- Listed for Ordinary (Unclassified) Locations
- Specific Wattages
- Accommodates A-21 lamps up to 150 Watts
Documents & Drawings
